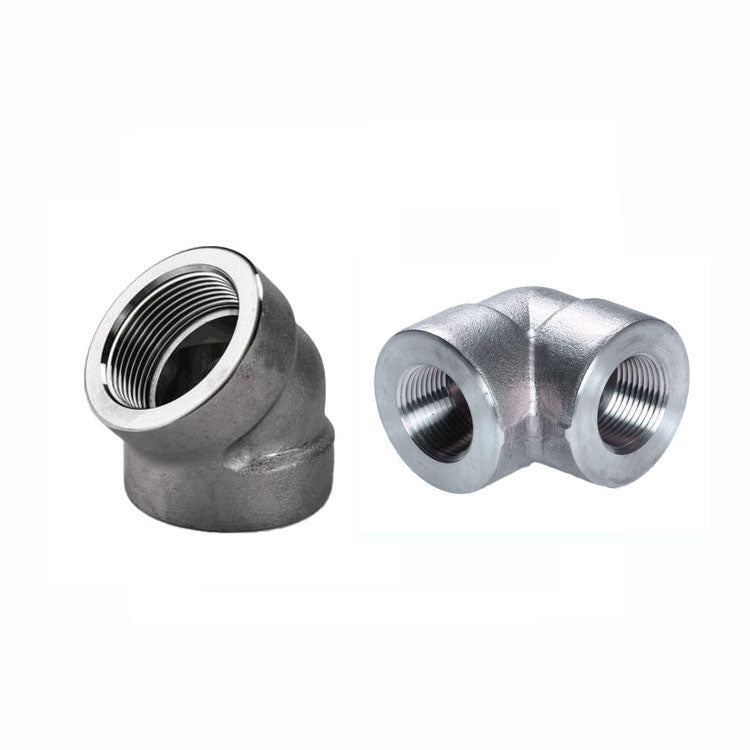

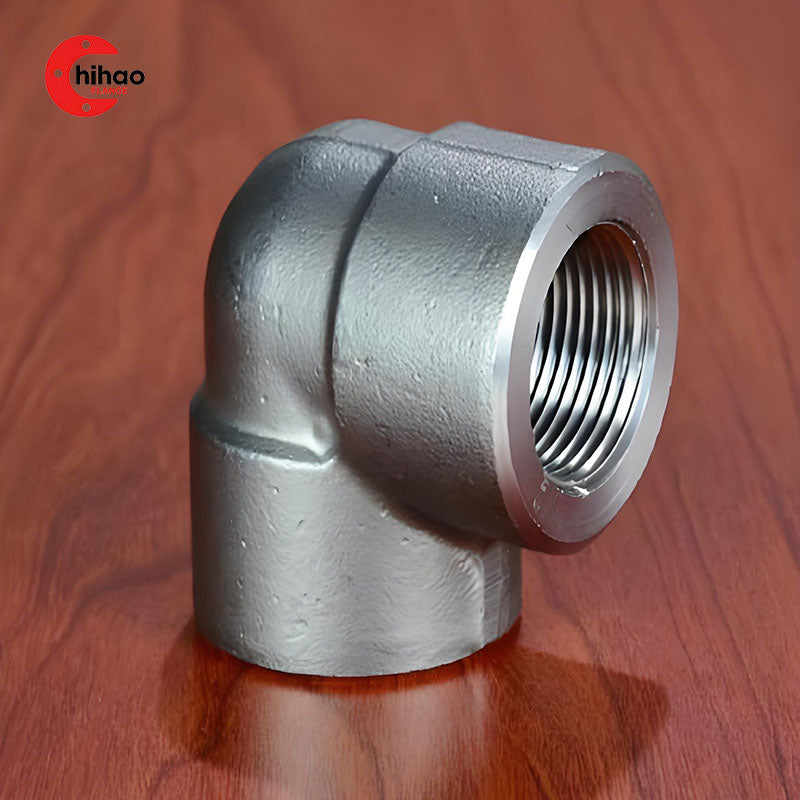

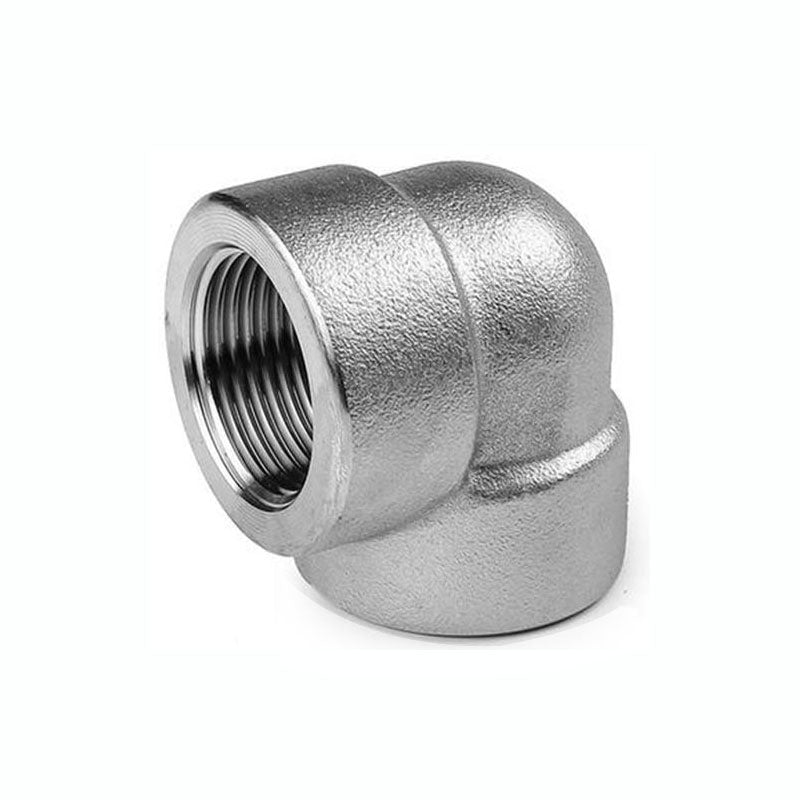

Forged Steel Threaded Elbow – High Pressure Pipe Fitting
A forged threaded elbow is a high-pressure pipe fitting used to change the direction of piping systems, typically by 90° or 45°. These fittings are manufactured through the forging process to ensure high strength, excellent mechanical properties, and superior reliability in demanding industrial environments.
Forged threaded elbows are widely used in oil & gas, petrochemical, power generation, chemical processing, and high-pressure fluid transportation systems.
Manufactured in accordance with international standards including
-
ASME B16.11
-
ASTM A105
-
GOST 17375
these fittings provide reliable sealing performance and long service life.
Key Features
-
High strength forged steel construction
-
Designed for high pressure piping systems
-
Precision machined NPT / BSPT threaded connections
-
Excellent mechanical strength and durability
-
Available in carbon steel, stainless steel, and alloy steel
-
Multiple pressure classes available
-
Suitable for corrosive or high temperature environments
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Forged Threaded Elbow |
| Angle | 45° / 90° |
| Manufacturing Process | Forged |
| Connection Type | Threaded (NPT / BSPT) |
| Size Range | 1/8" – 4" |
| Pressure Rating | 2000LB / 3000LB / 6000LB |
| Surface Treatment | Black, Hot Dip Galvanized, Anti-Rust Oil |
| Thread Type | NPT / BSPT |
| Packaging | Wooden Cases / Pallets |
Material Grades
Available materials include:
Carbon Steel
-
ASTM A105
Stainless Steel
-
ASTM A182 F304
-
ASTM A182 F316
Alloy Steel
-
ASTM A182 F11
-
ASTM A182 F22
Other materials can be supplied according to customer requirements.
Manufacturing Standards
Our forged threaded elbows are produced according to the following international standards:
American Standards
-
ASME B16.11
-
ASTM A105
European Standards
-
EN 10241 Threaded Steel Pipe Fittings
Russian Standards
-
GOST 17375
-
GOST 17380 Steel Pipe Fittings
Products can also be manufactured according to customer drawings or project specifications.
Applications
Forged threaded elbows are widely used in various industrial piping systems:
-
Oil & Gas pipelines
-
Petrochemical plants
-
Chemical processing industries
-
Power generation plants
-
Steam pipelines
-
Hydraulic and high pressure systems
These fittings are especially suitable for small diameter high-pressure piping systems.
Quality Control & Inspection
To ensure product quality and compliance with international standards, strict quality control procedures are implemented during manufacturing.
Inspection methods include:
-
Chemical composition analysis
-
Mechanical property testing
-
Dimensional inspection
-
Thread inspection
-
Pressure testing
-
PMI (Positive Material Identification)
Third-party inspection is available upon request.
Packaging & Delivery
Standard export packaging includes:
-
Wooden cases
-
Fumigated pallets
-
Protective caps on threaded ends
All products are carefully packed to ensure safe transportation during international shipping.
Customization
We support customized production according to:
-
Material grades
-
Pressure classes
-
Thread types
-
Surface treatment
-
Special project specifications
OEM and project supply services are available for global EPC contractors and distributors.
