Butt Weld Tee

Steel Pipe Tee for Industrial Piping Systems

Overview

Butt Weld Tee is a pipe fitting used to connect three sections of pipe and allow flow distribution or combination within a pipeline system.
It is welded directly to the pipe ends, providing a strong, leak-proof, and permanent connection suitable for high-pressure and high-temperature applications.

Butt weld tees are widely used in oil & gas, petrochemical, power generation, shipbuilding, offshore platforms, and industrial piping systems.

Product Features

  • Strong and permanent butt welded connection

  • Smooth internal bore for minimal flow resistance

  • High mechanical strength and excellent pressure performance

  • Suitable for critical and heavy-duty pipeline systems

  • Available in equal tee and reducing tee designs

  • Custom fabrication available according to drawings

  • Long service life under harsh working conditions

Types of Butt Weld Tee

By Outlet Size

  • Equal Tee – all three ends have the same diameter

  • Reducing Tee – branch outlet is smaller than the main run

Standards Compliance

Our Butt Weld Tees are manufactured according to major international standards:

  • ASME B16.9 – Factory-Made Wrought Butt Welding Fittings

  • ASME B16.28 – Small Size Butt Welding Tees

  • GOST Standards (Russia & CIS markets)

  • DIN 2615

  • JIS B2311 / B2312 / B2313

  • EN 10253

Materials & Grades

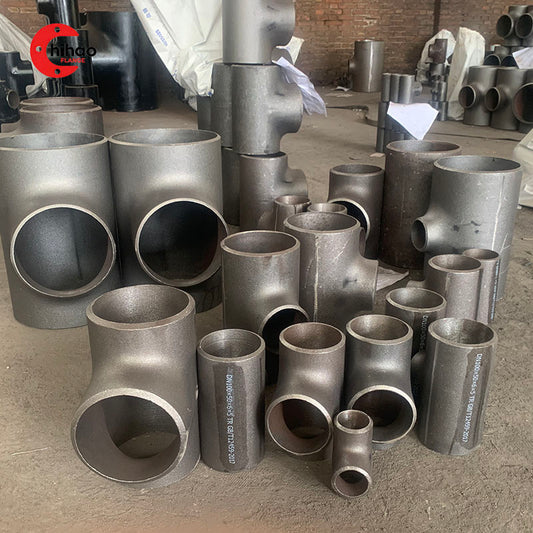

  • Carbon Steel: ASTM A234 WPB, WPC

  • Low Temperature Steel: ASTM A420 WPL6

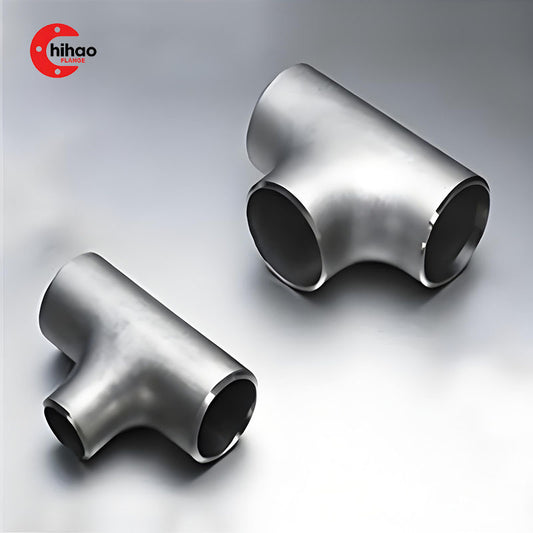

  • Stainless Steel: ASTM A403 WP304 / WP316 / WP321

  • Alloy Steel: ASTM A234 WP5 / WP9 / WP11 / WP22 / WP91

  • Special Materials: Duplex Stainless Steel, Nickel Alloys (Inconel, Monel, Hastelloy)

Size Range

  • Nominal Size: DN15 – DN2000 (1/2" – 80")

  • Wall Thickness: SCH 10 – SCH 160 / XXS

  • Forming Method: Hot forming / Cold forming

  • Connection Type: Butt Weld

Manufacturing Process

  • Hot forming / cold forming

  • Heat treatment

  • Beveling & end preparation

  • Dimensional inspection

  • Surface treatment (black, pickled, sandblasted, coated)

Applications

Butt Weld Tees are widely used in:

  • Oil & gas pipelines

  • Petrochemical and chemical plants

  • Power plants and boiler systems

  • Offshore platforms and shipbuilding

  • Water treatment and industrial piping networks

Quality Control & Inspection

  • Dimensional inspection

  • Chemical composition analysis

  • Mechanical property testing

  • PMI (Positive Material Identification)

  • NDT: UT / RT / MT / PT (upon request)

  • Hydrostatic test (if required)

Why Choose Our Butt Weld Tees

  • Manufactured in accordance with international standards (ASME / EN / DIN / JIS / GOST)

  • Wide range of materials and sizes

  • Stable supply for EPC and project orders

  • Custom fabrication based on drawings

  • Strict quality control and inspection system
