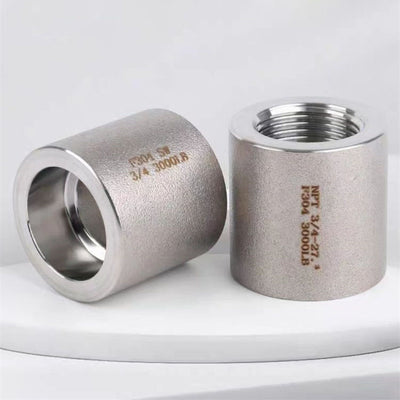

1. Product Overview
The Stainless Steel Socket Weld Pipe Coupling is a forged pipe fitting designed to connect pipes in high-pressure piping systems. The socket weld design allows pipes to be inserted into the fitting before welding, creating a strong and leak-resistant joint suitable for demanding industrial applications.
Manufactured from high-quality materials such as ASTM A182 F304 and F316 stainless steel, these couplings provide excellent corrosion resistance and mechanical strength. They are widely used in industries such as oil and gas, petrochemical processing, power generation, water treatment, and marine engineering.
Socket weld couplings are produced in accordance with ASME B16.11, ensuring reliable performance, dimensional accuracy, and compatibility with standard piping systems.
Two common structural types are available: Full Coupling and Half Coupling, each designed for different piping connection requirements.
2. Key Features
-
Forged stainless steel construction for superior strength and durability
-
Socket weld connection provides a secure and leak-resistant joint
-
Excellent corrosion resistance suitable for harsh environments
-
Designed for high-pressure piping systems
-
Available in Full Coupling and Half Coupling designs
-
Manufactured according to ASME B16.11
-
Available in 3000LB and 6000LB pressure classes
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Socket Weld Pipe Coupling |
| Material | ASTM A182 F304 / F316 |
| Standard | ASME B16.11 |
| Manufacturing Process | Forged |
| Connection Type | Socket Weld (SW) |
| Pressure Rating | 3000LB / 6000LB |
| Size Range | 1/2" – 4" |
| Structure Type | Full Coupling / Half Coupling |
| Surface Finish | Pickled, Sandblasted, or Passivated |
| Inspection | Dimensional inspection and material certification available |
4. Types of Socket Weld Couplings
Socket weld couplings are typically available in two structural types depending on their function in the piping system.

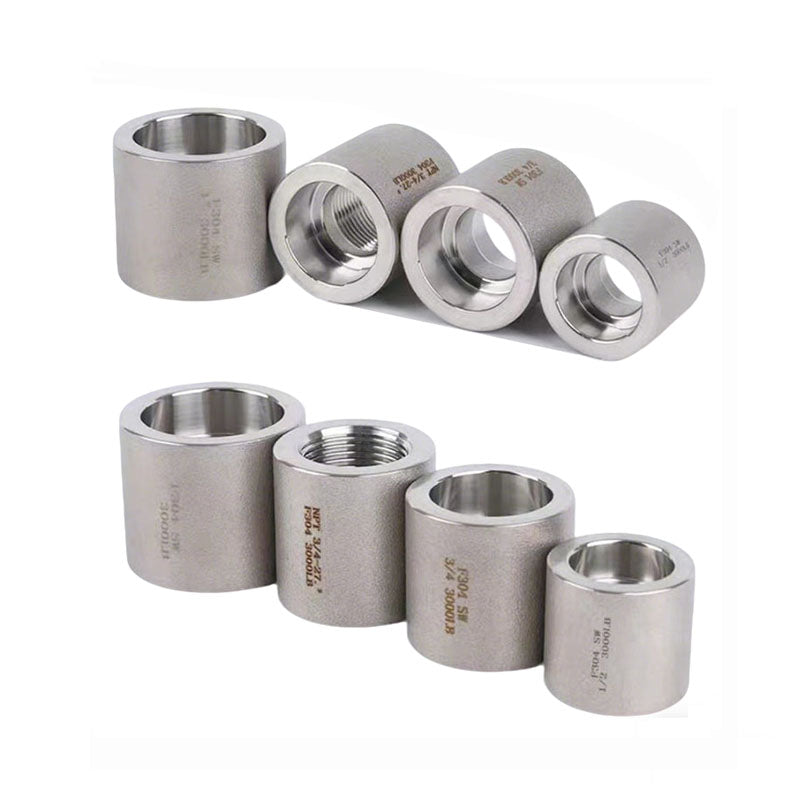

Full Coupling
A Full Coupling has socket weld connections on both ends and is used to connect two pipes of the same diameter in a straight pipeline. Pipes are inserted from both sides and welded externally, creating a strong and reliable joint.
Typical uses:
-
Pipeline extension
-
Industrial process piping
-
High-pressure pipe systems

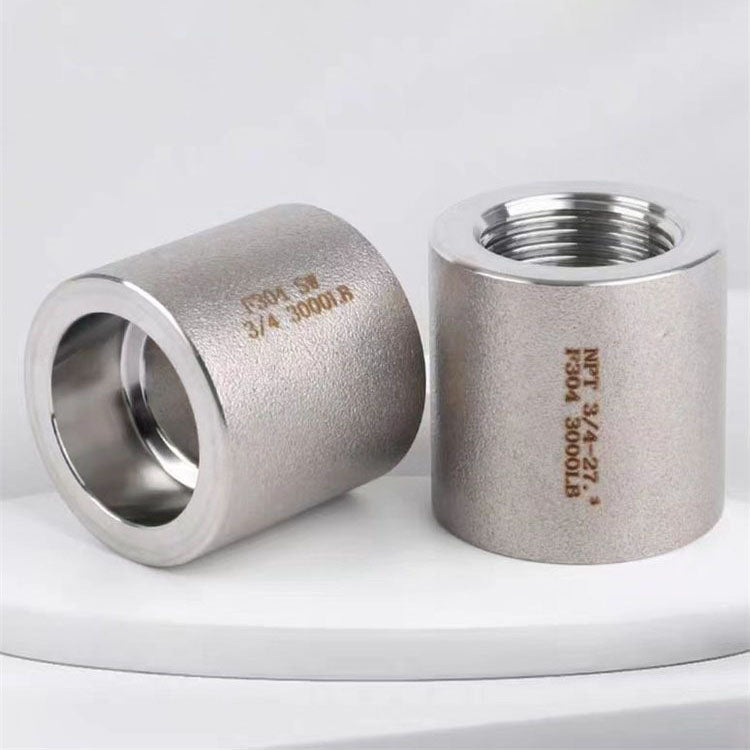

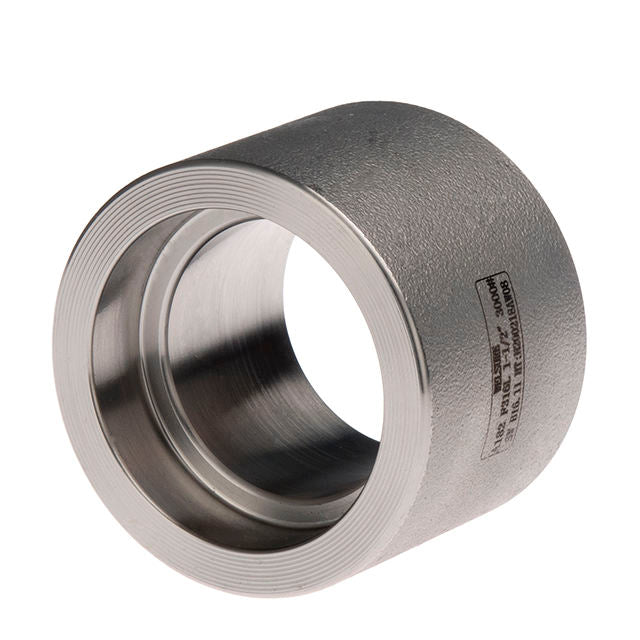

Half Coupling
A Half Coupling has only one socket weld connection and is usually welded directly onto the outside of a pipe or vessel to create a branch outlet.
Typical uses:
-
Instrument connections
-
Drain lines
-
Vent connections
-
Small branch pipelines

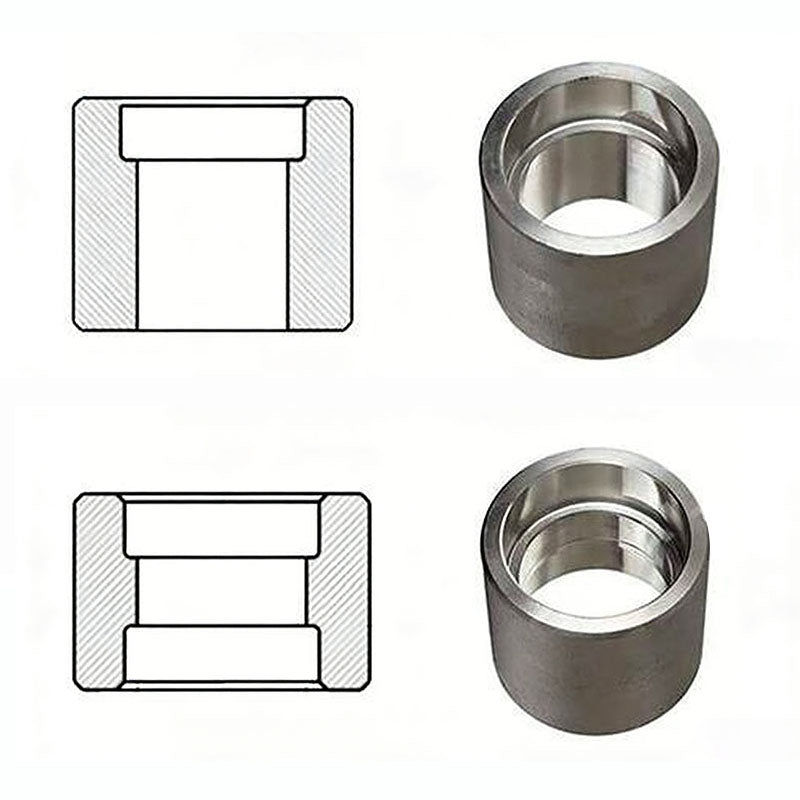

Structure Comparison
| Type | Structure | Main Function | Typical Application |
|---|---|---|---|
| Full Coupling | Socket weld on both ends | Connect two pipes inline | Pipeline extension |
| Half Coupling | Socket weld on one end | Create branch outlet | Instrument or drain connection |
5. Applications
Stainless steel socket weld couplings are widely used in industrial piping systems that require strong and reliable pipe connections.
Typical applications include:
-
Oil and gas pipeline systems
-
Petrochemical processing plants
-
Power generation facilities
-
Water treatment and desalination systems
-
Marine and offshore piping systems
-
Industrial process pipelines

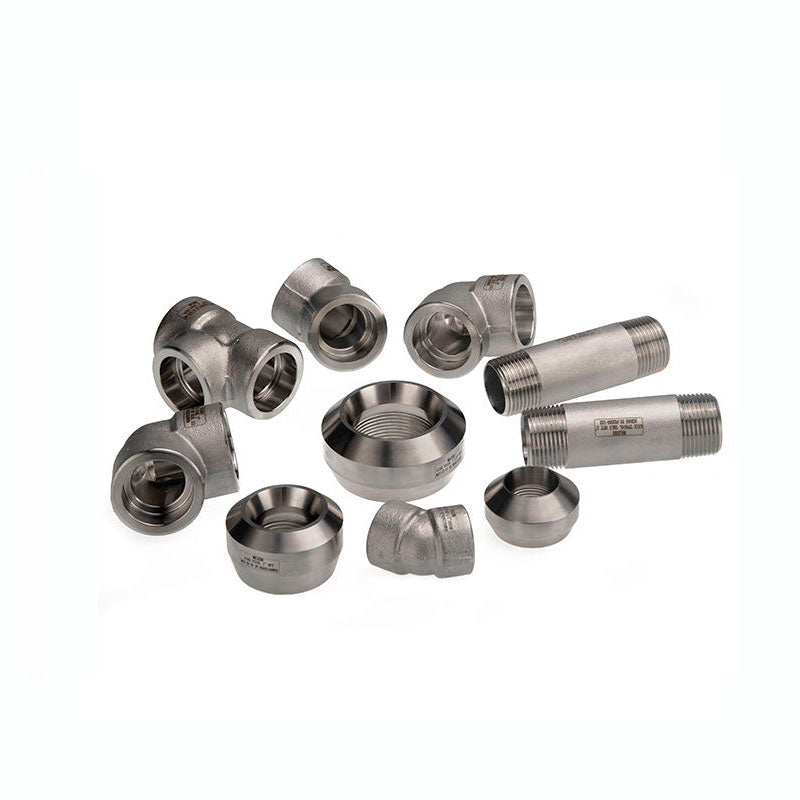

6. Related Products
We supply a complete range of forged stainless steel pipe fittings manufactured according to ASME B16.11, including:
-
Socket Weld Elbow
-
Socket Weld Tee
-
Socket Weld Union
-
Threaded Pipe Coupling
-
Stainless Steel Pipe Nipples
These forged fittings are available in various stainless steel grades such as F304 and F316, suitable for different industrial piping systems.
