🔹 Product Overview

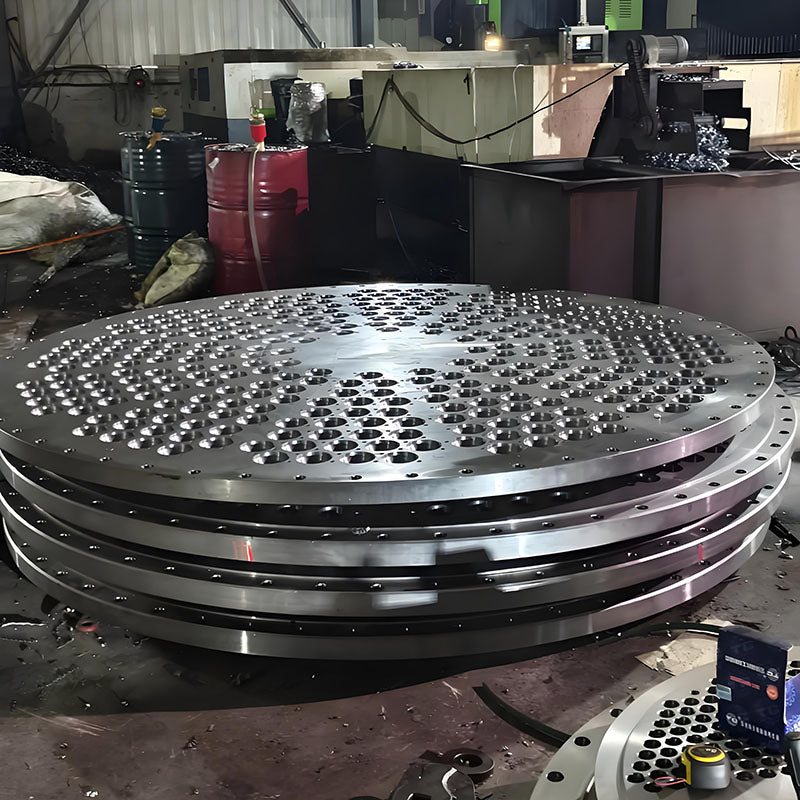

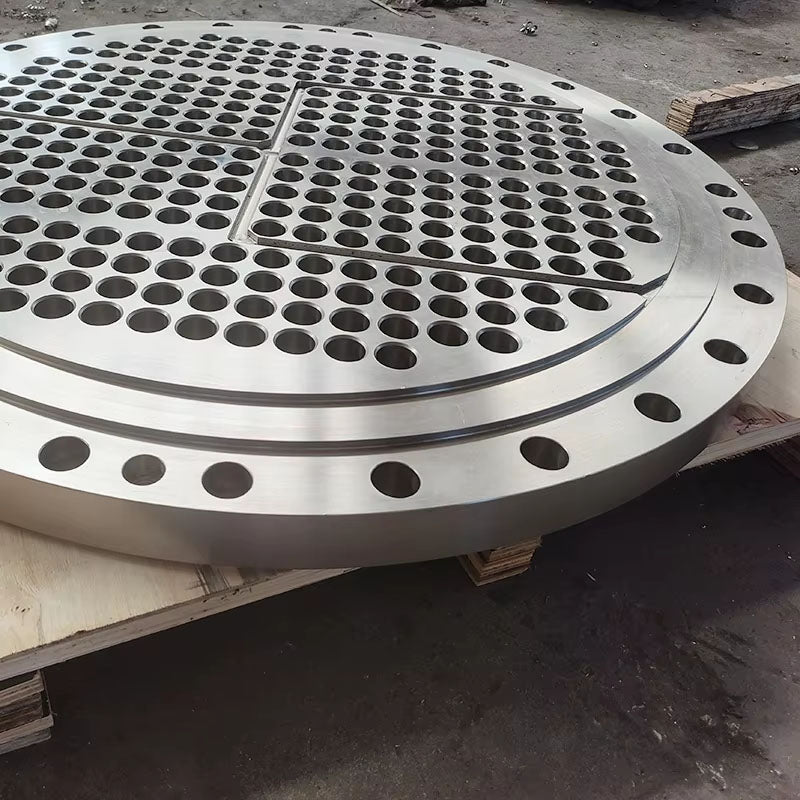

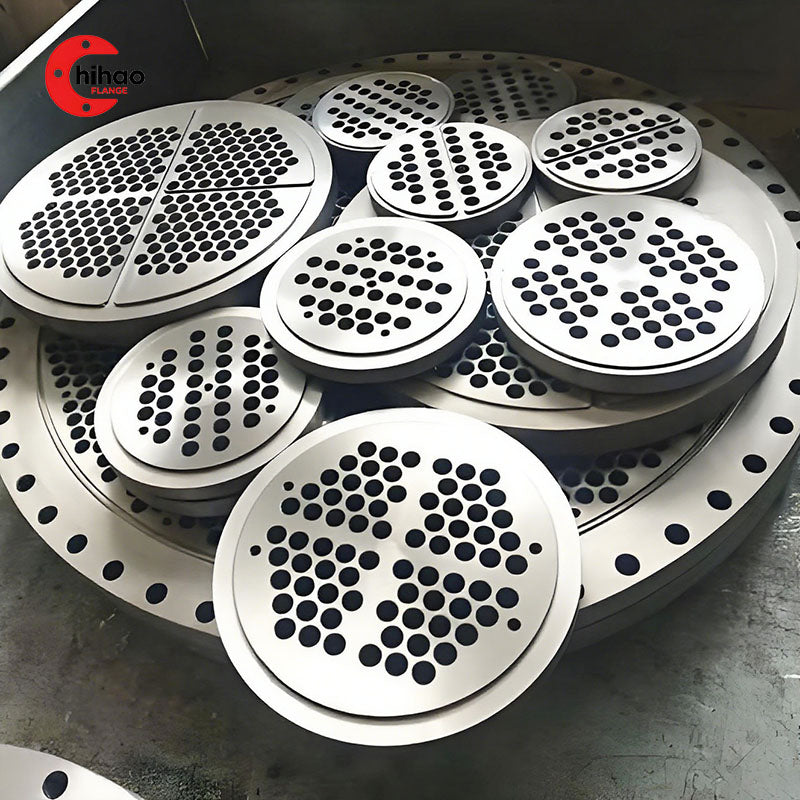

Carbon Steel Tube Sheet (also known as Tube Plate) is a critical component used in shell and tube heat exchangers, pressure vessels, boilers, and industrial equipment.
It is designed to support and fix heat exchange tubes and ensure sealing and pressure resistance between tube side and shell side.
We supply high-quality carbon steel tube sheets with precise drilling, machining, and strict quality control according to international standards.
🔹 Material Grades
Common carbon steel materials available:
-
ASTM A516 Gr.60 / Gr.70
-
ASTM A105
-
ASTM A36
-
Q235 / Q345
-
SA516
-
Other carbon steel grades upon request
🔹 Manufacturing Standards
Our carbon steel tube sheets can be produced according to:
-
ASME
-
ASTM
-
DIN
-
GB
-
GOST
-
JIS
Custom drawings and technical requirements are accepted.
🔹 Size Range
-
Diameter: Customized (up to large diameter machining)
-
Thickness: As per design requirement
-

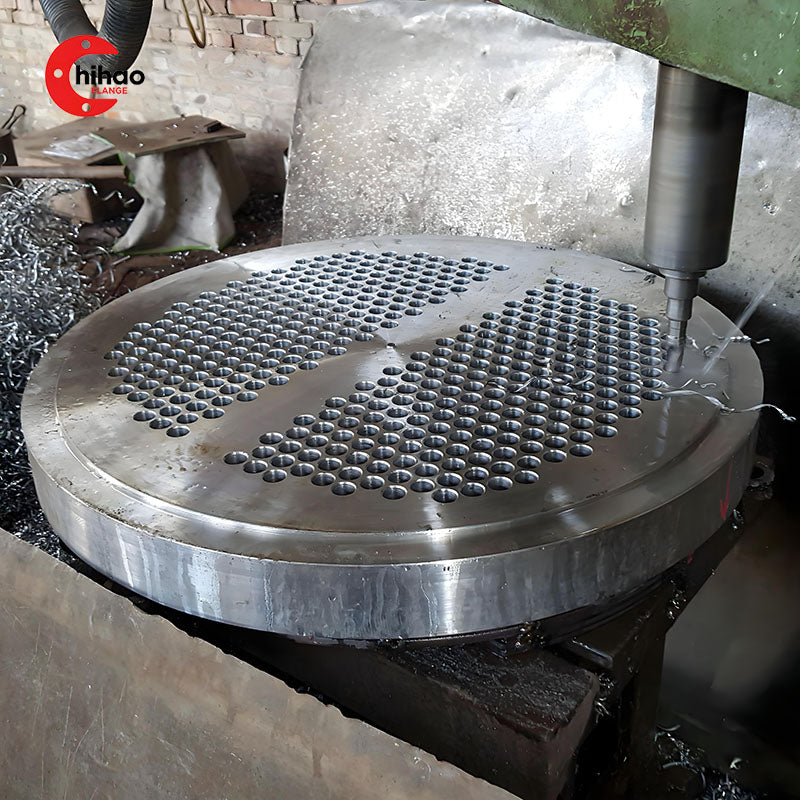

Hole drilling: CNC drilling for high accuracy
-
Tolerance: According to drawing or standard
🔹 Surface Treatment
-
Black (natural finish)
-
Sand blasting
-
Pickling
-
Oil coated
-
Anti-rust painting
-
Galvanized (optional)
🔹 Application
Carbon Steel Tube Sheets are widely used in:
-
Heat exchangers
-
Pressure vessels
-
Boilers
-
Petrochemical equipment
-
Oil & gas industry
-
Power plants
-
Chemical processing industry
🔹 Advantages
-
High strength and pressure resistance
-
Accurate drilling and machining
-
Customizable dimensions and hole patterns
-
Long service life
-
Competitive factory price
-
Stable supply for project orders
🔹 Quality Control
-
Material test certificate (EN10204 3.1)
-
Chemical composition & mechanical testing
-
Dimensional inspection
-
Visual inspection
-
Ultrasonic testing (UT) available
-
Third-party inspection accepted (SGS, BV, TUV)
🔹 Packing & Delivery
-
Wooden case or steel frame packing
-
Anti-rust protection inside
-
Suitable for long-distance sea transportation
🔹 Why Choose Us
-
Professional manufacturer of steel components
-
Rich export experience for industrial projects
-
OEM & ODM service supported
-
Fast quotation and technical response
-
Strict quality control system
