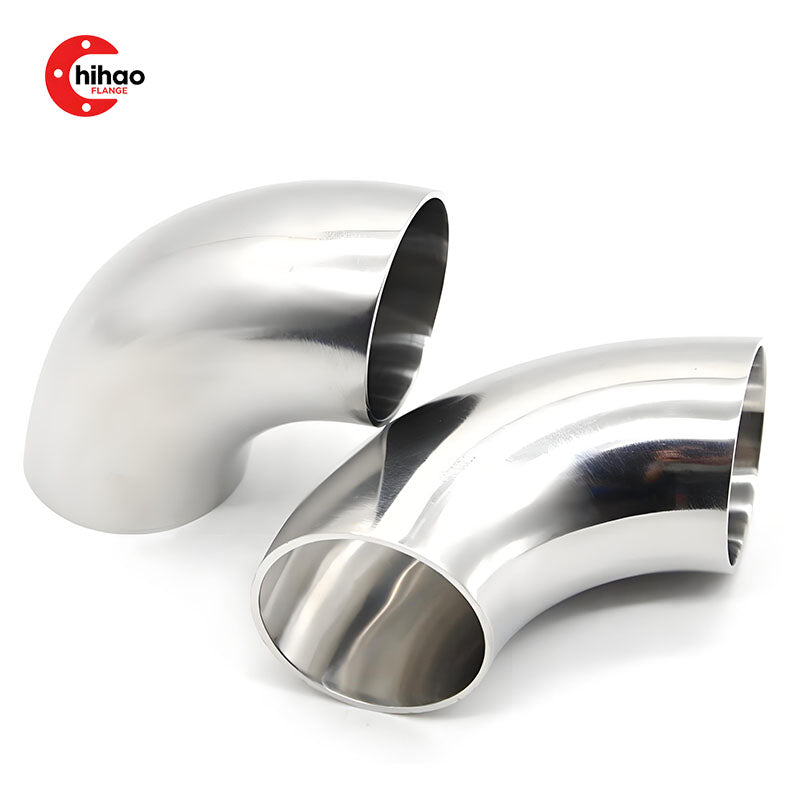

304/316L Polished Stainless Steel Sanitary 90° Welded Elbow

Corrosion-Resistant Sanitary Elbow for Hygienic Industrial Piping Systems

The 304/316L stainless steel sanitary 90° welded elbow is designed for hygienic and corrosion-resistant piping systems where cleanability, smooth internal surfaces, and reliable welded connections are essential. It changes the direction of a sanitary pipeline by 90° while maintaining a smooth flow path and minimizing areas where product residue, bacteria, or contaminants can accumulate.

Manufactured from 304 or 316L stainless steel, this sanitary welded elbow provides excellent corrosion resistance, mechanical strength, and durability for demanding industrial environments. The polished surface offers a smooth, low-contamination finish suitable for applications where hygiene and easy cleaning are important.

It is commonly used in food and beverage processing, dairy processing, breweries, pharmaceutical manufacturing, biotechnology, cosmetics, chemical processing, and other hygienic process piping systems.

Key Features

• 304 / 316L stainless steel construction for corrosion resistance and long service life

• 90° welded elbow design for changing pipeline direction efficiently

• Polished internal and external surfaces for improved cleanliness and easy maintenance

• Smooth internal bore helps reduce turbulence and product retention

• Welded connection provides a strong, permanent, and leak-resistant pipe joint

• Suitable for hygienic and sanitary process piping systems

• Available in different tube diameters and wall thicknesses

• Can be supplied with customized dimensions, surface finishes, and packaging

• Suitable for OEM, engineering projects, distributors, and industrial piping procurement

304 vs. 316L Stainless Steel

Both 304 and 316L stainless steel sanitary elbows are widely used in hygienic piping applications, but material selection should be based on the process medium and operating environment.

304 stainless steel provides good corrosion resistance and is a cost-effective choice for many food, beverage, water, and general sanitary applications.

316L stainless steel contains molybdenum and provides enhanced resistance to chloride-containing and more aggressive environments. It is particularly suitable for pharmaceutical, biotechnology, chemical, high-purity, and demanding food-processing applications where higher corrosion resistance is required.

For applications involving aggressive chemicals, chlorides, elevated temperatures, or strict hygienic requirements, 316L is generally the preferred material.

Polished Surface for Hygienic Piping

Surface finish is an important consideration when selecting sanitary pipe fittings. A properly polished stainless steel surface provides a smoother flow path and makes the fitting easier to clean.

The polished finish of this sanitary 90 degree elbow helps reduce surface irregularities where process residues or contaminants could accumulate. Depending on project requirements, different polishing levels and surface finishes can be supplied.

For hygienic applications, the required surface finish should be specified according to the cleaning method, process medium, and applicable sanitary piping requirements.

Welded Sanitary Connection

This elbow is designed for welded sanitary tubing connections, creating a continuous and robust pipeline after installation. Welding eliminates the need for threaded connections inside the process line and can provide a smooth, permanent connection when properly fabricated and finished.

For sanitary process systems, welding quality, internal weld penetration, surface finishing, and post-weld treatment are important factors in maintaining hygienic performance.

Typical Applications

The 304/316L polished sanitary 90° welded elbow is suitable for a wide range of hygienic and industrial piping applications, including:

• Food and beverage processing systems

• Dairy processing and milk pipelines

• Breweries and beverage production

• Pharmaceutical manufacturing

• Biotechnology and laboratory process systems

• Cosmetic production

• Clean water and purified water systems

• Chemical processing

• Hygienic process equipment

• Industrial fluid transfer systems

The fitting can be used wherever a sanitary pipeline needs to make a 90-degree directional change while maintaining corrosion resistance and a cleanable internal flow path.

Product Specifications

Actual dimensions, tube OD, wall thickness, bend radius, surface roughness, and applicable standards can be customized according to the customer's piping design and project specifications.

Why Choose a 304/316L Sanitary Welded Elbow?

For hygienic piping systems, the elbow is more than a simple directional fitting. Material grade, internal surface finish, dimensional accuracy, weldability, and cleanability all affect the reliability of the complete piping system.

Our 304/316L sanitary welded elbows are designed for buyers who require:

Corrosion Resistance
Stainless steel construction provides reliable resistance to moisture, many process fluids, and industrial environments.

Hygienic Design
Smooth polished surfaces and a sanitary welded connection help reduce contamination and product retention.

Reliable Welding
The weld-end design allows the elbow to be permanently integrated into stainless steel sanitary tubing systems.

Flexible Material Selection
304 stainless steel is suitable for many general sanitary applications, while 316L is available for more demanding corrosion-resistant applications.

OEM & Project Supply
Dimensions, materials, surface finish, packaging, labeling, and other requirements can be customized for engineering projects, distributors, and industrial buyers.

Custom Sanitary Elbow Manufacturing

We can supply OEM stainless steel sanitary elbows according to customer drawings, piping specifications, or project requirements.

Customization may include:

• Stainless steel grade: 304 / 316L

• Tube outside diameter

• Wall thickness

• Bend radius

• Surface finish

• Internal surface requirements

• Welding dimensions

• Packaging and labeling

• Custom production according to drawings or samples

For project orders, please provide the material grade, tube size, wall thickness, required surface finish, applicable standard, quantity, and application so we can recommend a suitable configuration and quotation.

FAQ

What is a sanitary 90° welded elbow?

A sanitary 90° welded elbow is a stainless steel pipe fitting used to change the direction of a hygienic pipeline by 90 degrees. It is welded directly to sanitary tubing to create a permanent and cleanable connection.

Is 304 or 316L stainless steel better for sanitary elbows?

Both materials are widely used. 304 stainless steel is suitable for many food, beverage, water, and general sanitary applications, while 316L stainless steel offers higher corrosion resistance and is often preferred for pharmaceutical, biotechnology, chemical, and chloride-containing environments.

What is the difference between a sanitary elbow and a standard pipe elbow?

A sanitary elbow is designed with greater emphasis on cleanability, smooth internal surfaces, corrosion resistance, and hygienic processing. Standard industrial elbows may prioritize pressure, mechanical strength, or general fluid transportation rather than hygienic requirements.

Can the sanitary elbow be welded to stainless steel tubing?

Yes. This product is designed for welded stainless steel sanitary tubing systems. Proper welding and post-weld finishing are important for maintaining the hygienic characteristics of the pipeline.

What industries use stainless steel sanitary elbows?

Common applications include food and beverage, dairy, brewing, pharmaceutical, biotechnology, cosmetics, chemical processing, purified water, and hygienic process equipment.

Can you manufacture custom 304/316L sanitary elbows?

Yes. Custom sizes, wall thicknesses, bend dimensions, surface finishes, packaging, and other specifications can be manufactured according to drawings, samples, or project requirements.

Request a Quote

Looking for a reliable 304 or 316L stainless steel sanitary 90° welded elbow supplier?

Send us your required size, material, wall thickness, surface finish, quantity, standard, and application. Our team can help select the appropriate sanitary elbow configuration and provide a quotation for your project or bulk order.
